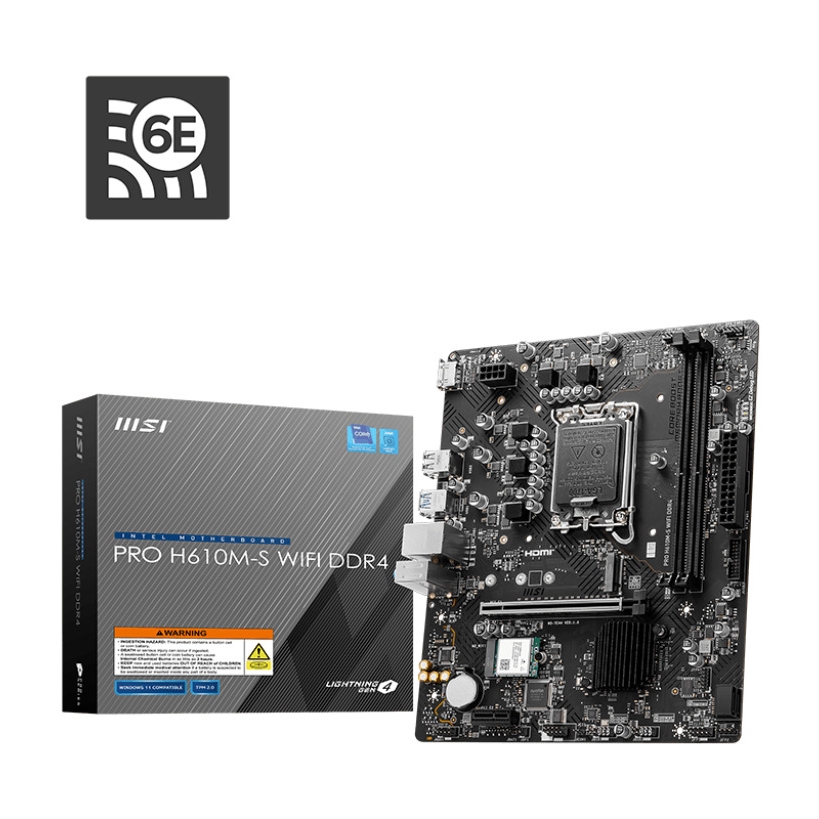

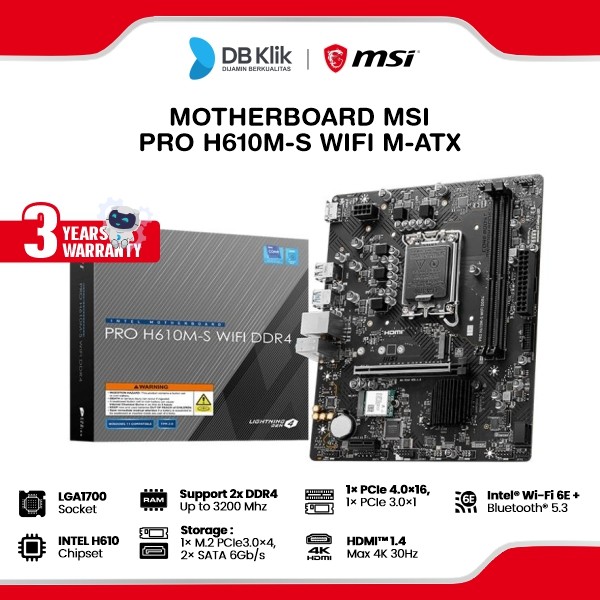

Motherboard MSI PRO H610M-S WIFI DDR4 m-ATX LGA1700

Chipset: INTEL H610

CPU: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

LGA: 1700

Memory:

2x DDR4, Maximum Memory Capacity 64GB

Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Onboard Graphics:

1x HDMI™

Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot:

1x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Audio:

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Storage 1x M.2

M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices

2x SATA 6G

USB:

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

LAN: Realtek® RTL8111H Gigabit LAN

Internal IO:

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

1x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

WIRELESS LAN & BLUETOOTH:

Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

LED FEATURE: 4x EZ Debug LED

BACK PANEL PORTS:

HDMI™

USB 3.2 Gen 1 5Gbps (Type-A)

USB 2.0

LAN port

Audio Connectors

USB 2.0

OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB Info: mATX (200mmx236.16mm)

3 Years Warranty
